Solar Water Pump Design for Center-Pivot Irrigation

A solar water pump can operate a center-pivot irrigation system, but the pump cannot be selected from motor watts or maximum flow alone. The design has to satisfy crop water volume, pivot inlet pressure, nozzle uniformity, borehole drawdown, pipe friction, and the hourly solar-power envelope at the same time. For an EPC contractor or distributor, the useful output is therefore a verified system duty, not a catalog model number.

This guide gives a calculation-led method for specifying a solar-powered center pivot. It is intended for irrigation designers, project buyers, pump distributors, and OEM teams preparing a quotation or factory acceptance plan.

Start with the irrigation duty, not the PV array

The first question is how much net irrigation depth the crop needs during the design period. Convert that depth into gross daily volume after accounting for the irrigated area and the expected application efficiency.

For a circular field, irrigated area is approximately:

Area = pi x effective radius squared

Daily gross volume can then be estimated as:

Gross volume = area x net irrigation depth / application efficiency

Consider an example with an effective irrigated area of 50 hectares, a peak net requirement of 6 millimetres per day, and an assumed application efficiency of 85 percent. One millimetre over one hectare equals 10 cubic metres, so the net requirement is 3,000 cubic metres per day. Dividing by 0.85 gives a gross target of about 3,529 cubic metres per day.

If the practical solar pumping window is eight hours, the average delivered flow during that window must be about 441 cubic metres per hour. That number is only a planning value. The final duty must be reconciled with the pivot nozzle chart, sector operation, end gun, travel speed, pressure regulators, and any storage or hybrid-power strategy.

The USDA NRCS Irrigation Guide explains that center-pivot application rate must be evaluated against soil intake and surface storage, particularly near the outer end where instantaneous application can be high. That means a design that supplies the daily volume can still create runoff if nozzle selection and travel settings are wrong.

Define total dynamic head at the required flow

The pump duty point is the required flow at total dynamic head, not simply the borehole depth. A defensible head schedule includes:

• dynamic water level at the design abstraction rate;

• vertical elevation from pumping level to the pivot inlet;

• friction loss through rising main, fittings, filters, valves, and field mainline;

• required pressure at the center-pivot inlet;

• a documented allowance for seasonal water-level change and reasonable fouling.

Convert pressure to head in consistent units. For water, 1 bar is approximately 10.2 metres of head. If a pivot requires 2.0 bar at its inlet, that requirement alone represents about 20.4 metres of head before elevation and friction are added.

Suppose the design flow is 441 cubic metres per hour, the dynamic lift is 28 metres, site elevation adds 7 metres, calculated pipe and fitting loss is 13 metres, and pivot inlet pressure requires 20 metres. The preliminary total dynamic head is 68 metres. The selected pump curve must pass through approximately 441 cubic metres per hour at 68 metres, with acceptable efficiency and motor loading. Maximum-head and maximum-flow endpoints do not prove this operating point.

Use minimum and maximum source levels to create at least two duty cases. A borehole test should establish sustainable yield and drawdown. If drawdown continues during the irrigation window, the pump may move away from the approved curve point even when PV power is available.

Match variable solar power to a pressure-sensitive load

A center pivot is not the same as filling an open storage tank. Its nozzle package needs a pressure range to maintain distribution performance. Direct solar power, however, changes through the day and during cloud events. A controller may keep the motor running at reduced speed while the pivot operates below its acceptable pressure.

The control philosophy should define one of three architectures:

1. Direct pumping with a protected operating window. The pivot runs only when the controller can maintain the minimum inlet pressure and flow.

2. Water storage between pump and pivot. The solar pump fills a reservoir, and a separate pressure pump supplies the pivot. This separates variable solar collection from pressure-sensitive irrigation but adds storage, another pump, and water-quality considerations.

3. Hybrid electrical supply. PV is the primary source, with grid or generator support when irradiance is insufficient. The controller and changeover arrangement must be approved for the motor and local electrical rules.

The FAO sourcebook on solar energy in irrigated agriculture covers design, operation, inspection, troubleshooting, and maintenance of solar PV pumping systems. Use its system approach when preparing the site survey and energy balance. Do not multiply PV nameplate power by sunshine hours and assume the result guarantees pressure. Array temperature, orientation, shading, controller efficiency, motor efficiency, pump efficiency, and off-design operation all affect useful hydraulic energy.

Check nozzle uniformity and soil intake

The pump supplier should receive the pivot manufacturer's nozzle schedule and pressure requirement. The irrigation designer should confirm that pressure variation along the lateral remains within the nozzle and regulator limits at the proposed flow.

The current USDA NRCS sprinkler-system criteria call for center-pivot uniformity to be evaluated with the Heermann-Hein weighted-area method and require pump performance to be checked at minimum and maximum flow for variable-rate operation. These checks matter because the outer spans irrigate more area and a small pressure error can affect a large portion of the field.

Commissioning should include catch-can or other approved uniformity testing when required by the project. Record pivot inlet pressure, selected distal pressures, flow, controller frequency, array voltage and current, water level, and weather conditions at the same time. A pressure gauge reading with no flow record is not enough.

Use a hydraulic and energy acceptance matrix

The purchase specification should define pass criteria before the supplier chooses the pump. A practical matrix includes:

| Test condition | Required observation | Acceptance basis | | --- | --- | --- | | Design solar window | Flow and inlet pressure maintained | Approved duty and pivot limits | | Minimum expected water level | Pump remains on approved curve | Measured flow, head, current | | Maximum expected water level | No motor overload | Current and controller limits | | Short cloud event | Controlled response, no unstable cycling | Logged pressure and restart sequence | | Low pressure | Pivot stops or alarms before poor application | Verified pressure switch/transducer setting | | Dry-run or excessive drawdown | Pump protects and recovers as specified | Timed fault and reset test | | End-gun operation | Pressure and flow remain acceptable | Pivot manufacturer requirement | | Hybrid transfer, if used | No unsafe overlap or damaging transient | Approved wiring and functional test |

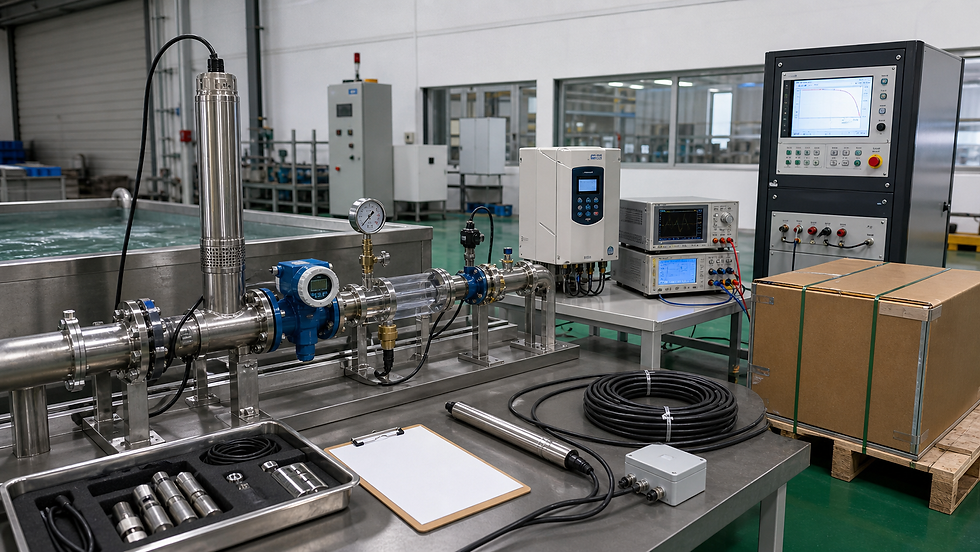

The supplier's factory test should verify the pump, motor, and controller combination at agreed hydraulic points. Site commissioning must then verify the complete installation because field piping, source behaviour, PV configuration, and pivot controls are outside a bare pump test.

For procurement preparation, also review RUTANPUMP's solar pump factory acceptance test guide, PV combiner box design guide, and duty-standby changeover guide.

Information an OEM buyer should send

A useful request for quotation should contain:

• field area, effective pivot radius, crop, peak irrigation depth, and operating schedule;

• nozzle chart, pivot flow, minimum inlet pressure, end-gun duty, and variable-rate range;

• borehole depth, static and dynamic water levels, tested yield, casing diameter, and water quality;

• elevations, pipe sizes, lengths, materials, fittings, filters, and valves;

• solar resource assumptions, available array area, module data, ambient-temperature range, and shading;

• preferred architecture: direct, storage-buffered, or hybrid;

• monitoring, communication, protection, spare-parts, documentation, and destination-market requirements.

The quotation should identify assumptions and exclusions. Pump curve, motor data, controller limits, array voltage window, cable sizes, sensor logic, and settings should be revision controlled. If an alternative component changes the duty or protection behaviour, it should require buyer approval.

Commissioning evidence to retain

Keep a serial-number-linked commissioning record with the approved pump and controller models, firmware, settings, PV string configuration, cable lengths, water levels, measured duty points, pivot pressures, fault tests, and photographs. Record instrument identifiers and calibration status where the project requires traceable measurements.

This record is valuable during warranty review. It distinguishes pump defects from source depletion, blocked filters, changed nozzles, altered controller settings, damaged PV strings, or increased pipeline loss. It also turns a successful pilot into a repeatable specification for subsequent sites.

Frequently asked questions

Can a center pivot run directly from solar panels without batteries?

Yes, when the hydraulic design and control system maintain the pivot's minimum pressure and flow during the permitted operating window. The system must stop or transition safely when solar power falls below that requirement. Storage water or hybrid power may be more practical where the irrigation schedule cannot follow daylight.

How much PV power should be installed?

There is no reliable watts-per-hectare shortcut. Size the array from the required hydraulic energy, pump and motor efficiencies, site solar resource, temperature, controller voltage window, operating schedule, and design margin. Verify the result against the complete pump curve and hourly operation, not only daily energy.

What data is essential before a supplier selects the pump?

Provide required flow, total dynamic head components, dynamic water level, pivot inlet pressure, pipe losses, nozzle schedule, daily water target, PV conditions, and fault strategy. Without those inputs, a model recommendation is provisional rather than an engineered selection.
